Nactus 6 Optical System with 6 Lenses – Module dimensions: 49.80mm x 49.80mm side – IESNA Type II Medium Cut Off
Nactus 6 Optical System with 6 Lenses
Module dimensions: 49.80mm x 49.80mm side – 7.88mm height
IESNA Type II Medium Cut Off
Material: Clear PMMA HT, Non-yellowing, 10-year guarantee
Full angle at 50% from maximum: ~ 144° x 62°
Full angle at 10% from maximum: ~ 164° x 121°

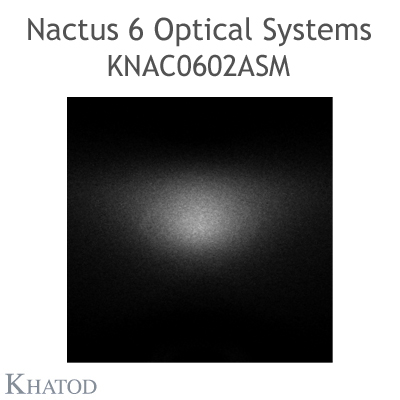

The light spots here represented refer to tests carried out with 6 LEDs 5050, and ~ 2490lm
On request, test circuits made by Khatod is available under the KFP51 part number.
The NACTUS Optical System is Patented.
Product images are for illustrative purposes only. All the data contained in this page are the property of Khatod Optoelectronic Srl and may change without prior notice. Production, marketing, distribution, sale of these products as well as their possible modifications and variations are only and exclusive right of Khatod Optoelectronic S.r.l. No company can perform any of these actions without written permission released by Khatod Optoelectronic S.R.L. – REPRODUCTION PROHIBITED –
