Silicone Lens for COB and UV LEDs – 85.09mm diameter – 16.76mm height – 90° FWHM
Lens material: Silicone
Fixing ring: KEL2056 Clear PC, KEL2056/01 Black PC, KEL2056ALU Aluminium

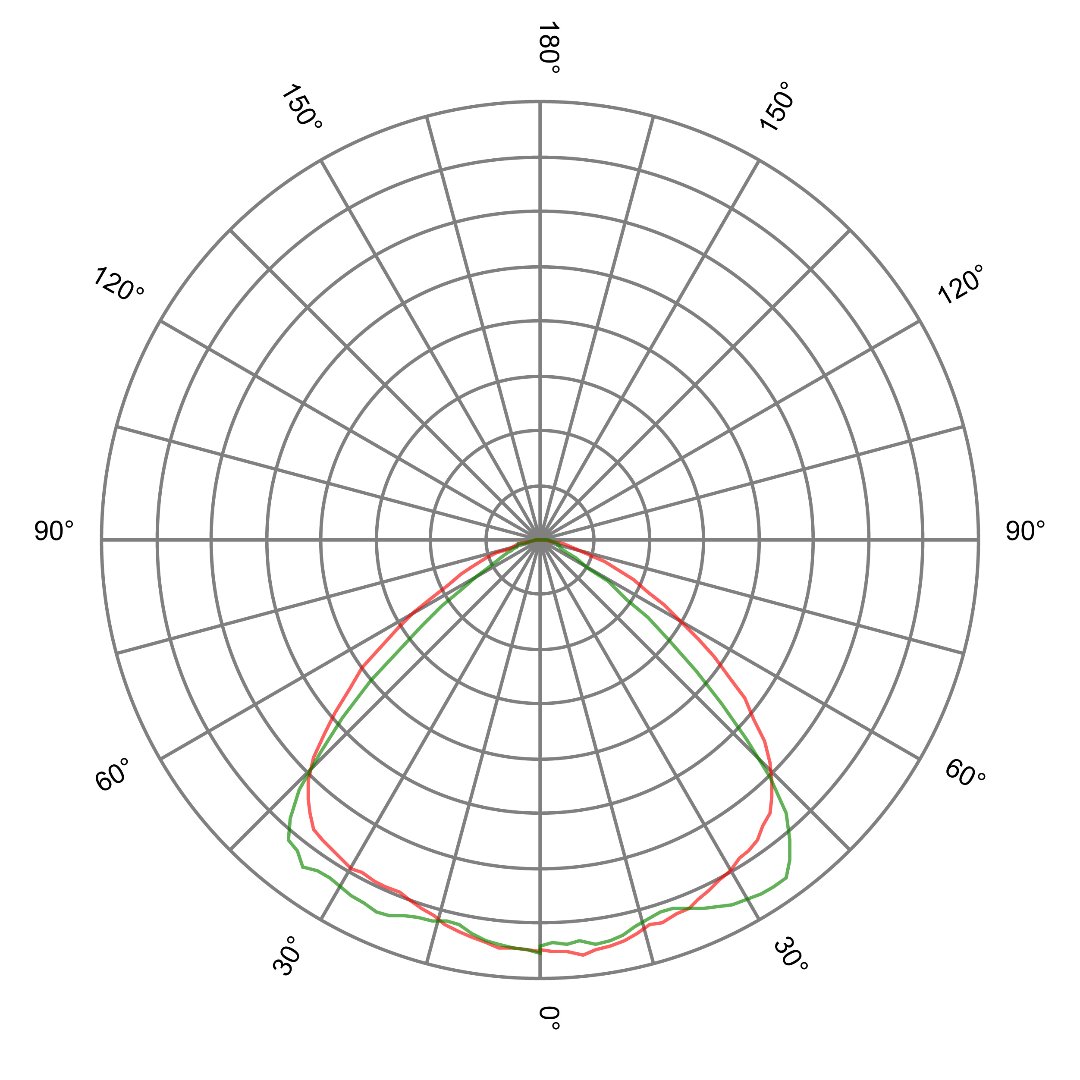

Full angle at 50% from maximum: ~ 90°
Full angle at 10% from maximum: ~ 130°
COB LEDs: The light spots here represented refer to tests carried out with CoBs 13mm LES, ~2420lm@LED
Conceived for any system using COB LEDs with LES ranging from 9mm to 23mm diameter

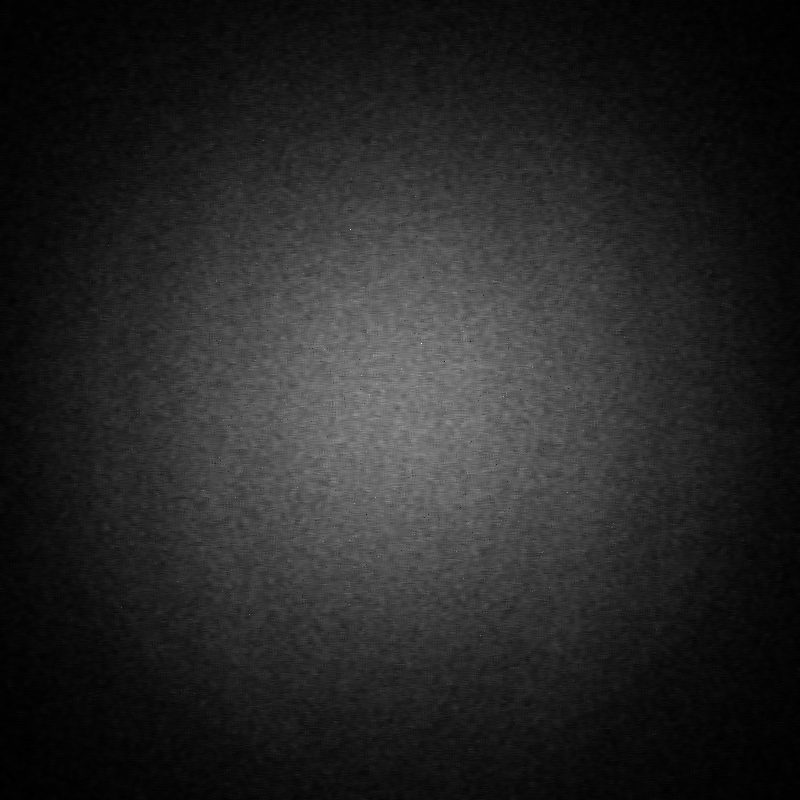

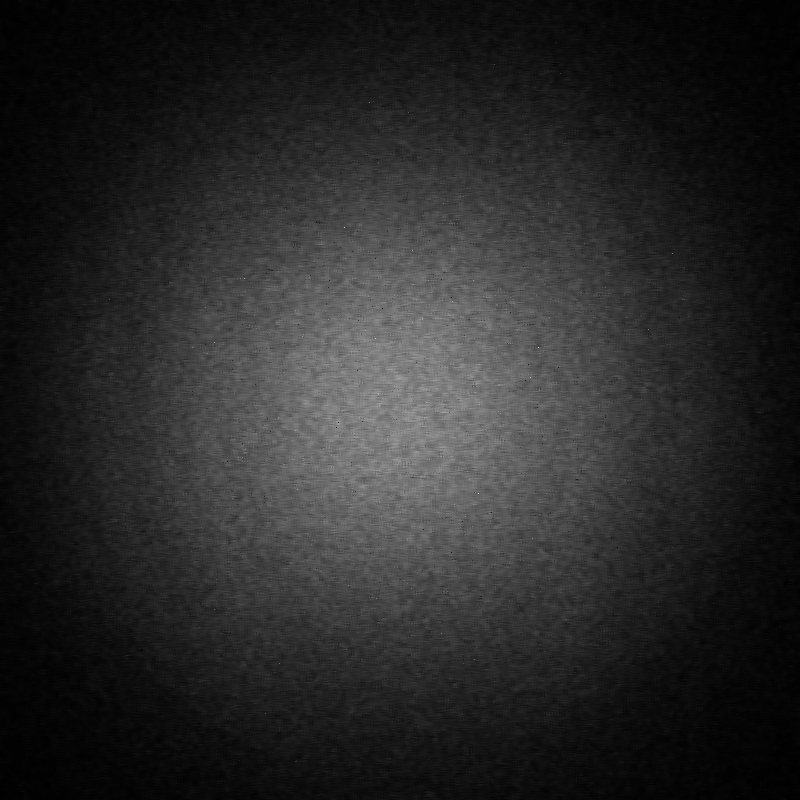

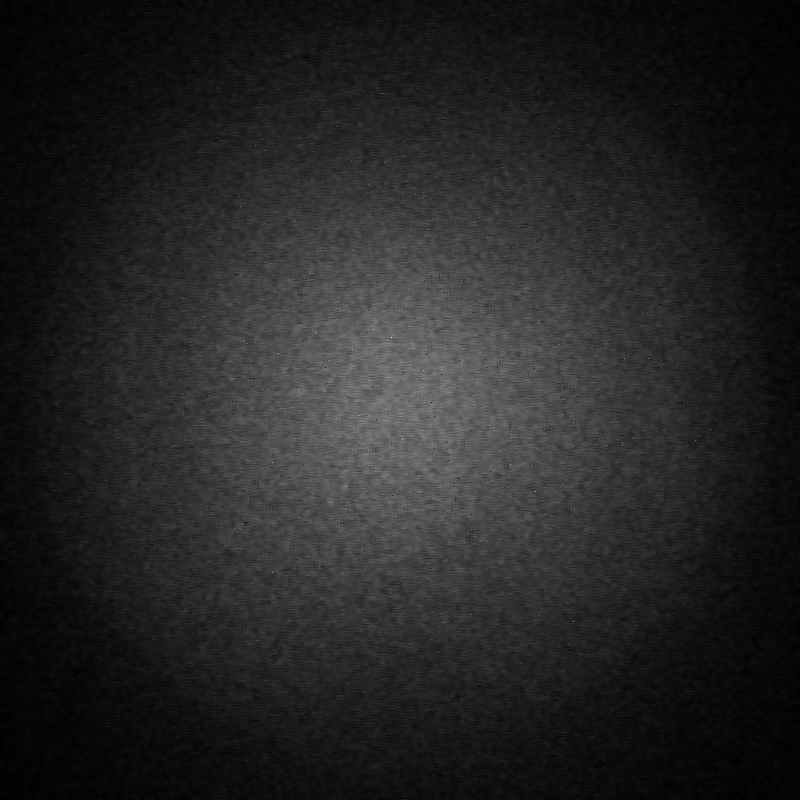

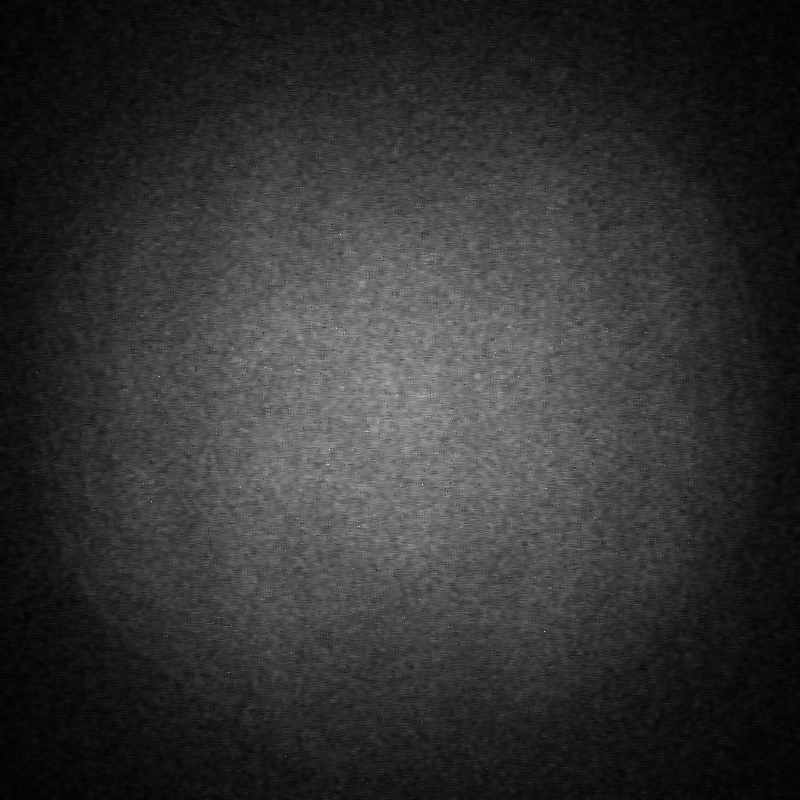

UV LEDs: The light spots here represented refer to tests carried out with a cluster of single LED creating an emitting area up to 23mm
Patent Pending
SIO3 Junior Silicone Optic is supplied without the fixing ring. The fixing ring is optional and will be supplied only on request under the KEL2056 (Material: Clear PC) part number or under the KEL2056/01 (Material: Black PC) part number or under the KEL2056ALU (Material: Aluminium) part number.
SIO3 Junior Silicone Optic is supplied without the holder with connector. The holder with connector by Bender-Wirth is optional, available only on request.
————————————————– Part Number ————————————————-
PLL2056SR88 [ SIO3 Junior Silicone Lens 90° FWHM ]
PLL2056SR88 + KEL2056 [ SIO3 Junior Silicone Lens 90° FWHM + Holder in Clear PC ]

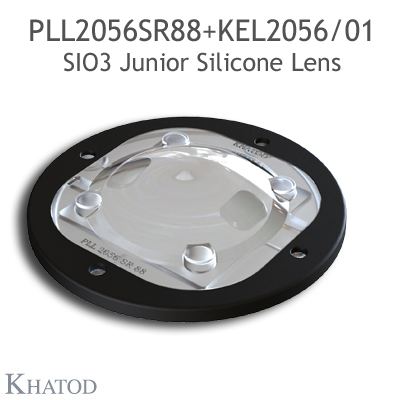

PLL2056SR88 + KEL2056/01 [ SIO3 Junior Silicone Lens 90° FWHM + Holder in Black PC ]
PLL2056SR88 + KEL2056ALU [ SIO3 Junior Silicone Lens 90° FWHM + Holder in Aluminium ]
Product images are for illustrative purposes only. All the data contained in this page are the property of Khatod Optoelectronic Srl and may change without prior notice. Production, marketing, distribution, sale of these products as well as their possible modifications and variations are only and exclusive right of Khatod Optoelectronic S.r.l. No company can perform any of these actions without written permission released by Khatod Optoelectronic S.R.L. – REPRODUCTION PROHIBITED –
