GAIA Optical Systems for Multichip LEDs; Module dimensions: 49,96mm x 49,96mm side, 17,50mm height – 60° FWHM
GAIA Optical Systems for Multichip LEDs
Module dimensions: 49,96mm x 49,96mm side – 17,50mm height
60° FWHM
• Material: PMMA HT
• Full angle at 50% from maximum: ~ 60°
• Full angle at 10% from maximum: ~ 75°

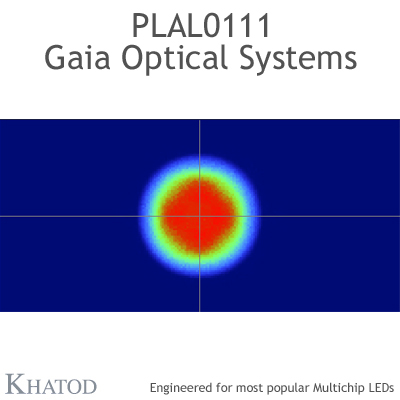

• The light spots here represented refer to tests carried out with Multichip LEDs with 6.8mm dome, ~1040lm @LED
• Optional: On request, Silicone Gasket for IP protection, standard OR 3137
• Optional: On request, available PCB&LEDs only for optical tests
————————————————– Part Number ————————————————-
PLAL0111 [ Gaia Optical Systems 60° Rotosymmetric ]
Product images are for illustrative purposes only. All the data contained in this page are the property of Khatod Optoelectronic Srl and may change without prior notice. Production, marketing, distribution, sale of these products as well as their possible modifications and variations are only and exclusive right of Khatod Optoelectronic S.r.l. No company can perform any of these actions without written permission released by Khatod Optoelectronic S.R.L. – REPRODUCTION PROHIBITED –
