GAIA Optical Systems for Multichip LEDs; Module dimensions: 195,74mm x 50,82mm side, 13,00mm height – 120° Square
GAIA Optical Systems for Multichip LEDs
Module dimensions: 195,74mm x 50,82mm side – 13,00mm height
120° Square
• Material: PMMA HT
• Full angle at 50% from maximum: ~ 120°
• Full angle at 10% from maximum: ~ 130°

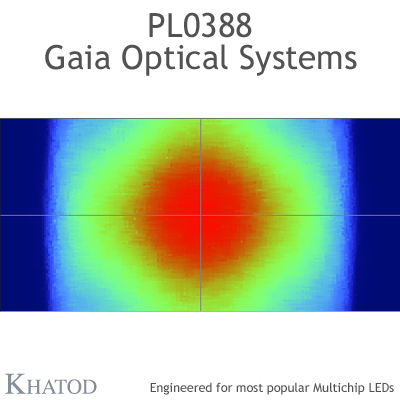

• The light spots here represented refer to tests carried out with Multichip LEDs with 6.8mm dome, ~1040lm @LED
• Optional: On request, Silicone Gasket for IP protection, it will be supplied only on request under the KGAS07 part number
• Optional: On request, available PCB&LEDs only for optical tests
GAIA is a linear lens-array made of 3 Free Form Optics that perform as a real single lens.
————————————————– Part Number ————————————————-
PL0388 [ Gaia Optical Systems 120° Square]
PL0388 + KGAS07 [ Gaia Optical Systems 120° Square + silicone gasket for IP protection ]
Product images are for illustrative purposes only. All the data contained in this page are the property of Khatod Optoelectronic Srl and may change without prior notice. Production, marketing, distribution, sale of these products as well as their possible modifications and variations are only and exclusive right of Khatod Optoelectronic S.r.l. No company can perform any of these actions without written permission released by Khatod Optoelectronic S.R.L. – REPRODUCTION PROHIBITED –
