KNAC1208ADS

Nactus Optical System with 12 Lenses
Module dimensions: 178,0mm x 81,28mm side

Description: 12 LED 27W 2750lm 5000K
IF (Nominal Current): 700mA
LED (Nominal LED Luminous Flux): 230lm
IES TYPE (IESNA Distribution Type): I
LONGITUDINAL (Longit. Classific. Categ.): MEDIUM
CUT OFF (Cut Off Type): SEMI
MAX Cd. (Maximum Candela): 3.610
HS (Coefficient of Utilization House Side): 0,48
SS (Coefficient of Utilization Street Side): 0,52

The DS version does not hold the pocket on one side for the cable entrance. Therefore all the sides of the DS version are flat. The cable entrance service of the panel is provided by a central hole.
One side of DS panel is gloss finish unlike the other sides and the panel that are frosted finish.
When mounting the panel onto the end application, the gloss side needs to be close to the support: pole, wall, peg, etc.
Easy assembly: insert the screws into the perimeter holes and fasten the module to the PCB. Preset for the housing of sensors.

The panel come IP protected with a silicone gasket placed in the perimeter groove.

On request, the multi-lens array is available with PCB for testing (LED Board (DEMO)).
The NACTUS Optical System is Patented.

————————————————– Part Number ————————————————-

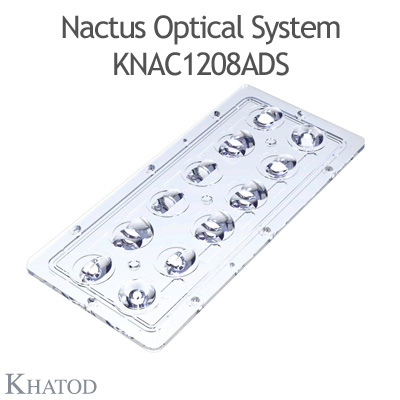

KNAC1208ADS [optic in DS version]
KNAC1208ADS1X [optic in DS version + LED Board (DEMO)]

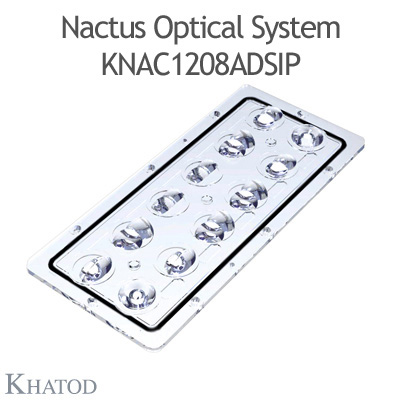

KNAC1208ADSIP [optic in DS version with a silicone gasket (IP protected)]
KNAC1208ADSIP1X [optic in DS version with a silicone gasket (IP protected) + LED Board (DEMO)]
