Lenses for Mid Power LEDs – Module dimensions: 285.90mm x 45.00mm side, 8.81mm height – 60° FWHM Extra Wide Beam
“LINEA Lenses for Mid Power LEDs”
Designed to comply with Zhaga Standards
Material: PMMA 8N: Top -40° … 90°C
Full angle C0-C180 at 50% from maximum: ~ 60°
Full angle C0-C180 at 10% from maximum: ~ 85°
38.7mm pitch between the mounting fins; fit for PCB with 24.0mm maximum width

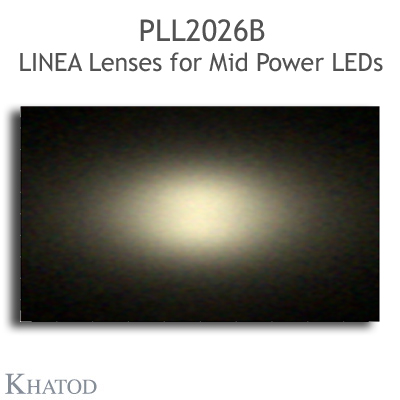

The light spots here represented refer to tests carried out with 22 ½ Watt LEDs, 5.6x3mm size, ~1100lm@Strip
Linea Lenses offer exclusive installation also in continuous rows made of limitless number of parts by simple fastening with screws. Ideal for use in narrow width luminaire designs, in architectural and decorative applications.
TYPICAL APPLICATIONS:
Indoor, Indoor architectural & general lighting, Indoor ceiling mounted luminaires, Office
Product images are for illustrative purposes only. All the data contained in this page are the property of Khatod Optoelectronic Srl and may change without prior notice. Production, marketing, distribution, sale of these products as well as their possible modifications and variations are only and exclusive right of Khatod Optoelectronic S.r.l. No company can perform any of these actions without written permission released by Khatod Optoelectronic S.R.L. – REPRODUCTION PROHIBITED –
