Nactus Optical System with 36 Lenses – Module dimensions: 178,00mm x 195,68mm (with pocket, the cable entrance service is provided by a pocket on one side of the panel)
Nactus Optical System with 36 Lenses
Module dimensions: 178,00mm x 195,68mm
Description: 36 LED 80W 8300lm 5000K
IF (Nominal Current): 700mA
LED (Nominal LED Luminous Flux): 230lm
H (Pole Height): 5,5m
RW (Road Width): 7,5m Off axis
LAMP DISTANCE (Pole to Pole Distance): 15m
LAVE (Average Luminance): 2,20
UO (Overall Uniformity): 0,50
UL (Longitudinal Uniformity): 0,70
The cable entrance service is provided by a pocket on one side of the panel that works also as a benchmark for the correct mounting of the panel.

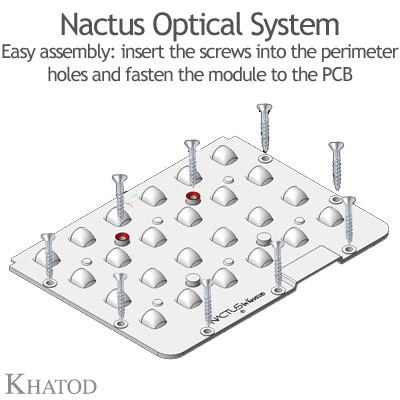

Easy assembly: insert the screws into the perimeter holes and fasten the module to the PCB. Preset for the housing of sensors.
The panel come IP protected with a silicone gasket placed in the perimeter groove.
On request, the multi-lens array is available with PCB for testing (LED Board (DEMO)).
The NACTUS Optical System is Patented.
————————————————– Part Number ————————————————-
KNAC3616A [optic]
KNAC3616A1X [optic + LED Board (DEMO)]
KNAC3616AIP [optic with a silicone gasket (IP protected)]
KNAC3616AIP1X [optic with a silicone gasket (IP protected) + LED Board (DEMO)]
Product images are for illustrative purposes only. All the data contained in this page are the property of Khatod Optoelectronic Srl and may change without prior notice. Production, marketing, distribution, sale of these products as well as their possible modifications and variations are only and exclusive right of Khatod Optoelectronic S.r.l. No company can perform any of these actions without written permission released by Khatod Optoelectronic S.R.L. – REPRODUCTION PROHIBITED –
