KNAC2413ADS

Nactus Optical System with 24 Lenses
Module dimensions: 178,0mm x 137,16mm

Description: 24 LED 40W 4200lm 5000K
IF (Nominal Current): 530mA
LED (Nominal LED Luminous Flux): 175lm
H (Pole Height): 5,5m
RW (Road Width): 7,5m Center
LAMP DISTANCE (Pole to Pole Distance): 10m
LAVE (Average Luminance): 3,00
UO (Overall Uniformity): 0,40
UL (Longitudinal Uniformity): 0,80

The DS version does not hold the pocket on one side for the cable entrance. Therefore all the sides of the DS version are flat. The cable entrance service of the panel is provided by a central hole.
One side of DS panel is gloss finish unlike the other sides and the panel that are frosted finish.
When mounting the panel onto the end application, the gloss side needs to be close to the support: pole, wall, peg, etc.

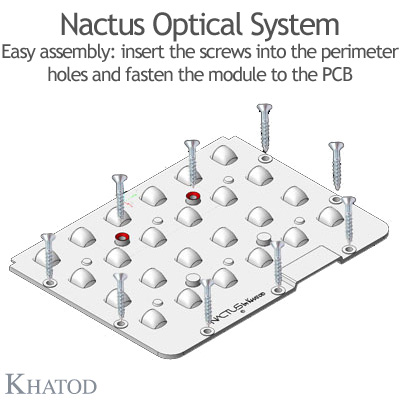

Easy assembly: insert the screws into the perimeter holes and fasten the module to the PCB. Preset for the housing of sensors.

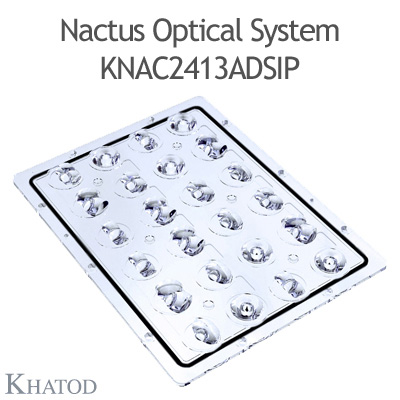

The panel come IP protected with a silicone gasket placed in the perimeter groove.

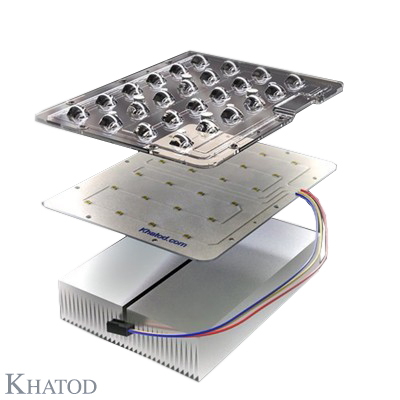

On request, the multi-lens array is available with PCB for testing (LED Board (DEMO)).
The NACTUS Optical System is Patented.

————————————————– Part Number ————————————————-

KNAC2413ADS [optic in DS version]
KNAC2413ADS1X [optic in DS version + LED Board (DEMO)]

KNAC2413ADSIP [optic in DS version with a silicone gasket (IP protected)]
KNAC2413ADSIP1X [optic in DS version with a silicone gasket (IP protected) + LED Board (DEMO)]
