SQUARE Lens – 74.90mm x 74.90mm side, 9.54mm height – Medium Beam – Pegs and Fixing with Glue
SQUARE Optical Systems with 25 Lenses for 3535 package LEDs
74.90mm x 74.90mm side – 9.54mm height with pegs and fixing with glue
Medium Beam
Material: PMMA
Full angle at 50% from maximum: ~ 25.8°
Full angle at 10% from maximum: ~ 45.4°

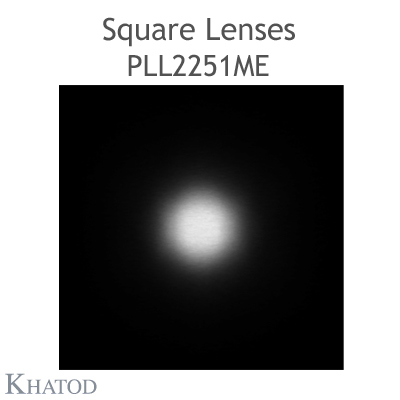

The light spots here represented refer to tests carried out with 25 LEDs 3535, and ~ 6500 Lumen
High lighting efficiency and excellent luminous flux.
The lens can be used individually or configured in multiple parts so to create the perfect lighting fixture for your application, as linear lighting rows or in configurations of different shape and width.

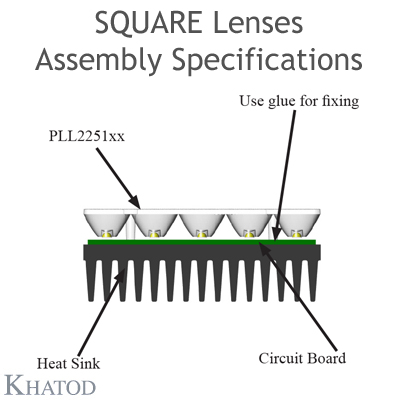

The Lenses are easily assembled by glue.
Product images are for illustrative purposes only. All the data contained in this page are the property of Khatod Optoelectronic Srl and may change without prior notice. Production, marketing, distribution, sale of these products as well as their possible modifications and variations are only and exclusive right of Khatod Optoelectronic S.r.l. No company can perform any of these actions without written permission released by Khatod Optoelectronic S.R.L. – REPRODUCTION PROHIBITED –
