Low Profile Lenses for COB LEDs – 89.87mm diameter, 18.07mm height – 19° FWHM Narrow Beam
“COSMO Lenses for COB LEDs”
Lens Material: PMMA 8N: Top -40° … 90°C
Full angle at 50% from maximum: ~ 19°
Characterized on 19mm LES, it works on all COBs with LES between 19mm to 22mm
The light spots here represented refer to tests carried out with COBs 19mm LES, ~ 3200lm@LED

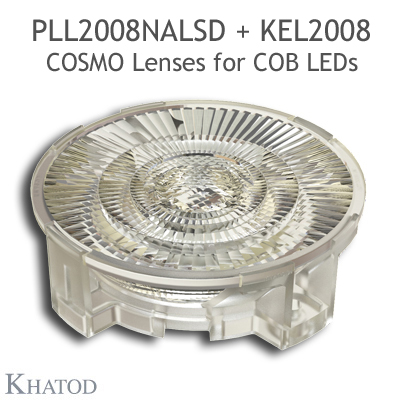

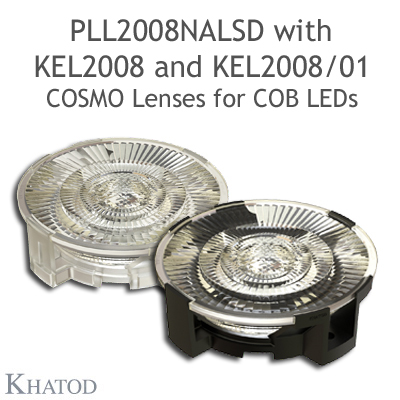

PLL2008NALSD Lens is supplied without holder. The holder is optional and will be supplied only on request, under KEL2008 (Clear Transparent) part number or under KEL2008/01 (Black) part number.
Holder Material: PC: Top -40° … 120°C
TYPICAL APPLICATIONS:
Indoor, Indoor architectural & general lighting, Indoor ceiling mounted luminaires, Indoor recessed fixtures, Indoor spotlights, Retrofit, Spot lighting and projectors, Track systems
Product images are for illustrative purposes only. All the data contained in this page are the property of Khatod Optoelectronic Srl and may change without prior notice. Production, marketing, distribution, sale of these products as well as their possible modifications and variations are only and exclusive right of Khatod Optoelectronic S.r.l. No company can perform any of these actions without written permission released by Khatod Optoelectronic S.R.L. – REPRODUCTION PROHIBITED –
