PLL080425

Nactus 4×2 Optical System with 8 Lenses
Module dimensions: 118,80mm x 71,40mm side – Height: 10,82mm – Lens pitch: 25,40 mm
Type II

Material: PMMA Clear, Non-yellowing, 10-year guarantee**
Full angle at 50% from maximum: ~ 140° x 58°
Full angle at 10% from maximum: ~ 150° x 105°

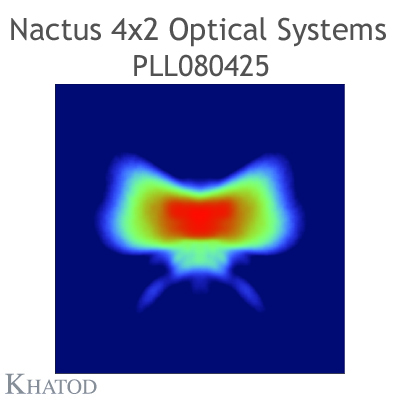

The light spots here represented refer to tests carried out with LEDs with 3mm DOM and 2mm² LES, ~ 260lm@LED

On request, the multi-lens array is available with PCB for testing (LED Board (DEMO)).
The NACTUS Optical System is Patented.

————————————————– Part Number ————————————————-

PLL080425 [optic]
PLL0804251X [optic + LED Board (DEMO)]

**PLL080 series is made of the same material used to produce PLEXIGLAS® Solar which guarantees it will show no yellowing for 10 years.
Yellowness Index (YI) according to the test standards for Arizona/Florida outdoor exposure testing:
– YI 6 under hot/dry conditions
– YI 8 under hot/wet conditions
