Kflex Optical System with 32 Lenses – Module dimensions: 49.50mm x 100.30mm – 6.20mm height – Vertical Asymmetric Beam
Kflex Optical System with 32 Lenses, lined up 4×8
Module dimensions: 49.50mm x 100.30mm – 6.20mm height
Vertical Asymmetric Beam
Material: Clear PMMA, Non-yellowing, 10-year guarantee**
Full angle at 50% from maximum: ~ 160°x125°
Full angle at 10% from maximum: ~ 175°x170°

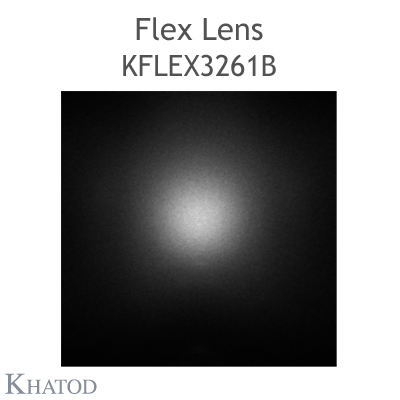

The light spots here represented refer to tests carried out with 3030 LEDs, ~54lm per LED
IP Version on Request
Compatible with Zhaga Book 15
**KFLEX32 series is made with material which guarantees it will show no yellowing for 10 years.
Yellowness Index (YI) according to the test standards for Arizona/Florida outdoor exposure testing:
– YI 6 under hot/dry conditions
– YI 8 under hot/wet conditions
