Single Lens with Self-adhesive tape – 16.10mm diameter – 10.00mm height – Medium Beam
Material: PMMA for Lens, PC Black for Holder
Self adhesive tape is applied on the lens bottom
Full angle at 50% from maximum: ~ 25°
Full angle at 10% from maximum: ~ 45°

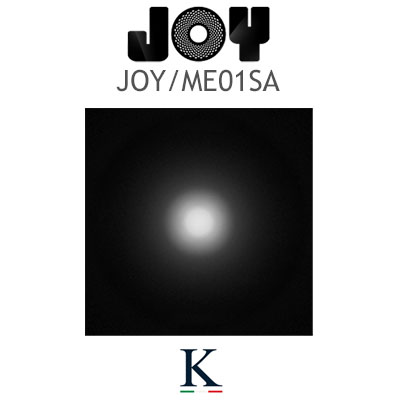

The light spots here represented refer to tests carried out with 3535 LED with dome and 2mm² LES
Product images are for illustrative purposes only. All the data contained in this page are the property of Khatod Optoelectronic Srl and may change without prior notice. Production, marketing, distribution, sale of these products as well as their possible modifications and variations are only and exclusive right of Khatod Optoelectronic S.r.l. No company can perform any of these actions without written permission released by Khatod Optoelectronic S.R.L. – REPRODUCTION PROHIBITED –
